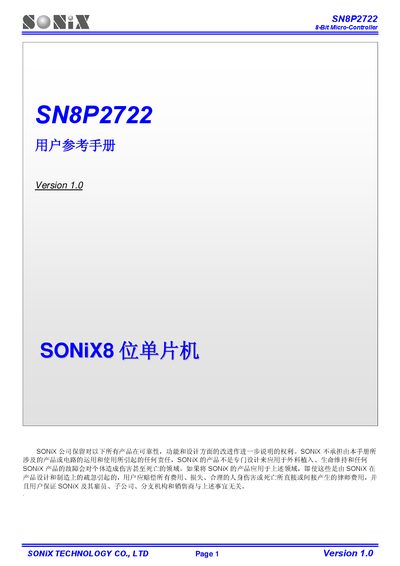

SN8P2722 8-Bit Micro-Controller User's Manual, introduces the product's features, system structure, pin configuration, pin description, pin circuit structure, central processing unit (CPU), addressing mode, stack, reset, system clock, system working mode, wake up time and interrupt.
The SONiX SN8P2722 is an 8‑bit microcontroller with on‑chip ROM, RAM, timers, ADC and PWM modules. This manual provides a detailed description of the CPU core, memory organization, pin configuration, and register map.
Key sections include pin‑out tables for PDIP, SOP and SSOP packages, interrupt handling, timer operation modes, ADC channel usage, and programming/OTP information. The document also lists electrical characteristics and packaging options. This manual is written in Japanese.
| ROM size | 2K × 16‑bit |
|---|---|
| Package types | PDIP 20‑pin, SOP 20‑pin, SSOP 20‑pin |
| ADC channels | 5‑channel 12‑bit ADC |
The SN8P2722 contains 2 K × 16‑bit ROM.
The device is offered in PDIP, SOP and SSOP packages, each with 20 pins.
The microcontroller includes a 5‑channel 12‑bit ADC.
