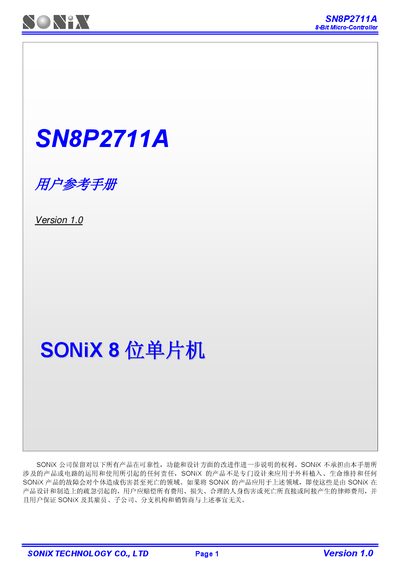

SN8P2711A is an 8-bit microcontroller produced by SONiX TECHNOLOGY CO., LTD. It has improvements in reliability, functionality, and design. The product is not intended for use in surgical implants, life support, or any field where failure could result in injury or death.
This reference manual describes the SN8P2711A 8‑bit microcontroller from SONiX. It covers the device architecture, memory organization, pin assignments, clock sources, and operating modes, serving as a technical guide for developers and engineers.
Key sections include detailed register maps, ADC channel information, timer/counter functions, PWM generation, interrupt handling, and package options. The document also lists safety notices and warranty limitations for the product. This manual is written in Japanese.
| CPU frequency | 16 MHz + 2 % |
|---|---|
| ADC channels | 5 + 1 channels, 12‑bit |
| Package types | P‑DIP 14‑pin, SOP 14‑pin, SSOP 16‑pin |
It provides a 5 + 1 channel, 12‑bit ADC.
The CPU can run up to 16 MHz with a 2 % increase over the base frequency.
