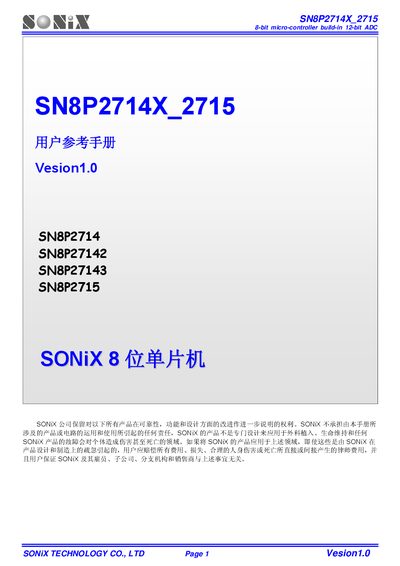

This document introduces the SN8P2714X_2715 8-bit micro-controller with built-in 12-bit ADC, and provides detailed information about the features and characteristics of the product.
This reference manual describes the SN8P2714X and SN8P2715 microcontrollers, covering their architecture, pin assignments, memory organization, and peripheral functions. It includes safety notices, version history, and detailed tables for each variant in the series.
Key sections cover the device characteristics, pin‑out diagrams, option code settings, ROM/RAM specifications, system registers, interrupt handling, timer modules, ADC/DAC modules, and programming details. The document also provides package information for the various pin‑count versions (18‑, 20‑, 28‑, and 32‑pin packages). This manual is written in Chinese.
| ROM size | 2K |
|---|---|
| RAM size | 128 bytes |
| I/O pins (SN8P2715) | 32 pins |
| ADC channels | 8 channels, 12‑bit resolution |
Each device contains 2 KB of ROM.
The SN8P2715 is available in a 32‑pin package.
The device provides an 8‑channel, 12‑bit ADC.
