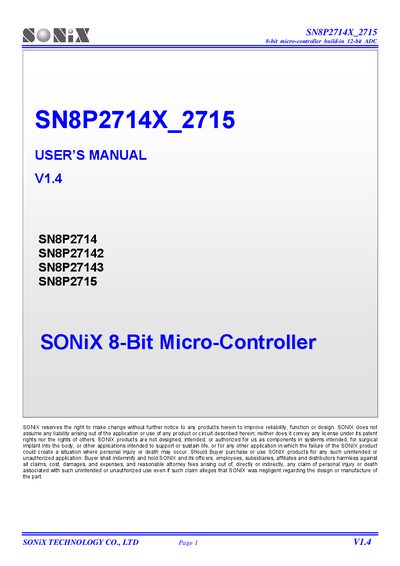

SN8P2714X_2715 is an 8-bit micro-controller with built-in 12-bit ADC. It is produced by SONiX TECHNOLOGY CO., LTD. The document describes the features and characteristics of the product.
This manual describes the SN8P2714X/2715 series 8‑bit microcontroller from SONiX, covering its features, memory configuration, pin functions, and built‑in peripherals such as ADC, DAC, timers and watchdog.
It includes sections on system block diagram, pin assignment, register maps, reset behavior, oscillator options, timer/counter operation, interrupt handling, analog‑to‑digital conversion, development tools, and package information, helping designers integrate the device into their applications.
| OTP ROM size | 2K × 16 bits |
|---|---|
| RAM size | 128 × 8 bits |
| ADC channels | 8 channels, 12‑bit |
| DAC resolution | 1 channel, 7‑bit |
| Timer/Counter units | Two 8‑bit timers/counters |
| External high‑clock max (RC) | 10 MHz |
| External high‑clock max (Crystal) | 16 MHz |
| Internal low‑clock options | RC 16 kHz (3 V) / 32 kHz (5 V) |
The device contains a 2 K × 16‑bit OTP ROM.
It supports up to eight 12‑bit ADC channels.
External interrupts are available on pins P0.0 and P0.1.
The device offers Normal mode (both high and low clocks active), Slow mode (low clock only) and Sleep mode (both high and low clocks).
