Hitachi AOB Orifice Specification Sheet

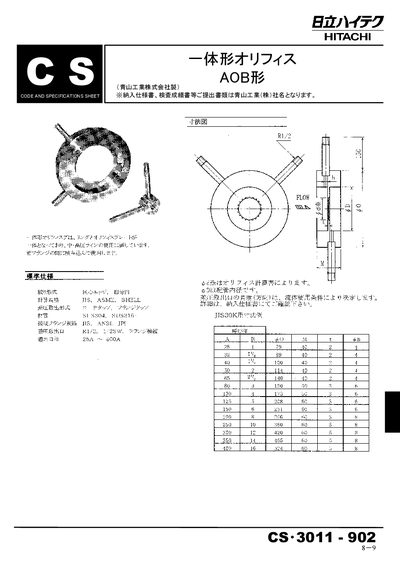

This document is a product manual for CS3011-902 8-9 and CS3011-902 8-10, describing the appearance, specifications, and instructions for use of the products.

Brand: Hitachi
Category: Industrial Supply
Document type: Datasheet
Language: Japanese
Pages: 2
File format: PDF
File size: 152 KB
Published: 04 January, 2012
Updated: 29 September, 2023
MD5 checksum: 86F513676A8620995CB7D1C45EF8BD24
PDF: Hitachi AOB Orifice Specification Sheet PDF

About this manual

This document provides the technical specifications for the Hitachi AOB integrated orifice. It includes dimension drawings, flow data, material choices, and the applicable flange connection standards.

The sheet also lists the range of applicable diameters (25A‑400A) and a code table that defines the various flange types and pressure ratings. All specifications follow JIS, ANSI, and JPI standards as indicated. This manual is written in Japanese.

What's inside

Specification Sheet
Dimensions
Flow
Standard Specifications
Calculation Standards
Differential Pressure Outlet Types
Materials
Flange Standards
Applicable Diameters
Code Table

Specifications

Material	SUS304, SUS316
Flange Standards	JIS, ANSI, JPI
