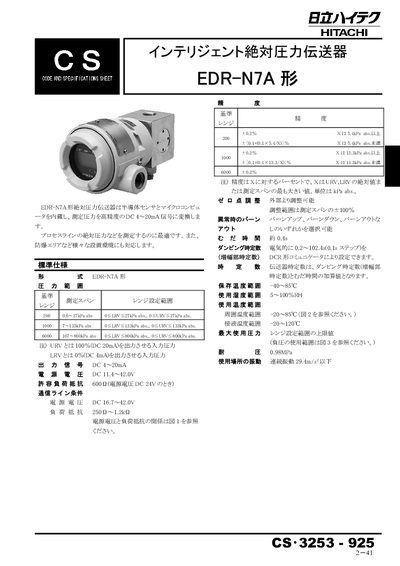

The document describes the features and characteristics of the CS3253-925 product.
The EDR‑N7A absolute pressure transmitter incorporates a semiconductor sensor and micro‑computer to provide high‑accuracy pressure measurement with a 4‑20 mA output. It is designed for process line absolute pressure monitoring and can be configured for various pressure ranges and communication options.
The device supports selectable pressure ranges (0.6‑27 kPa, 7‑133 kPa, 107‑800 kPa), operates from DC 11.4‑42.0 V, and offers HART communication, IP67 protection, and explosion‑proof versions (ExdoTCT4). Materials such as SUS316 diaphragm and SUS316L contact parts are specified for corrosion resistance. This manual is written in Japanese.
| Pressure range (200 model) | 0.6–27 kPa abs |
|---|---|
| Output signal | DC 4‑20 mA |
| Power supply voltage | DC 11.4–42.0 V |
| Load resistance (24 V supply) | 6000 Ω |
| Storage temperature range | -40 °C to 85 °C |
| Ambient operating temperature range | -20 °C to 55 °C |
| Communication protocol | HART (planned from Apr 2010) |
| Protection rating | IP67 (JIS C 0920) |
| Explosion‑proof rating | ExdoTCT4 (with indicator) / ExdoTLCT4 (without indicator) |
| Diaphragm material | SUS316 |
It provides a DC 4‑20 mA current loop output.
The device operates from a DC supply of 11.4 V to 42.0 V.
Yes, HART communication is planned to be available from April 2010.
