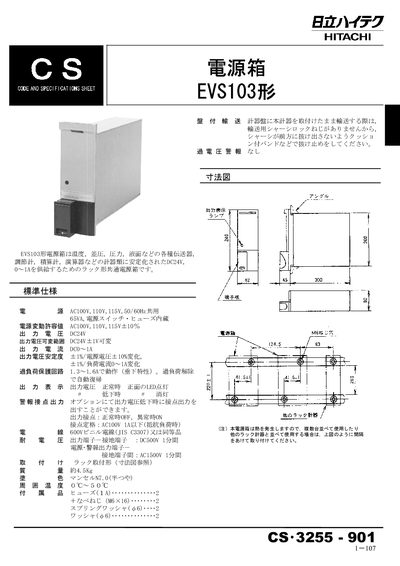

The EVS103 is a rack‑mount common power supply designed to feed various transmitters, controllers, accumulators and calculators with a stable DC24 V. It accepts AC input voltages of 100 V, 110 V or 115 V at 50/60 Hz and delivers up to 65 VA.
Key features include an adjustable output voltage (DC24 V ± 1 V), overload protection with automatic reset, optional contact output for voltage‑drop indication, and a compact design weighing about 4.5 kg. Installation requires a rack mounting plate and proper spacing when multiple units are used together. This manual is written in Japanese.
| Input voltage | AC100V, 110V, 115V, 50/60 Hz |
|---|---|
| Output voltage adjustable range | DC24 V ± 1 V |
| Power rating | 65 VA |
| Enclosure type | Rack‑mount |
| Overload protection | Automatic reset after overload |
| Optional contact output | NO when normal, ON when abnormal |
It can be powered from AC100 V, 110 V or 115 V at 50 Hz or 60 Hz.
Yes, it includes an overload protection circuit that automatically resets after an overload condition.
Yes, an optional contact output can be configured to activate when the output voltage falls.
