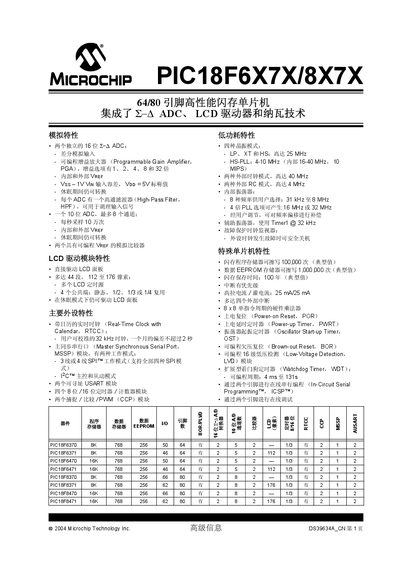

The PIC18F6X7X/8X7X is Microchip's latest 16-bit Flash microcontroller family. This series of products offers high performance, low power, multiple peripherals and rich software resources, making it the ideal embedded control chip.
The PIC18F6X7X/8X7X series integrates two independent 16‑bit Σ‑Δ ADCs with programmable gain, a 10‑bit ADC offering up to 8 channels, and programmable‑VREF comparators. It also includes an LCD driver capable of directly driving panels with up to 44 segments and 112‑176 pixels, even while the device is in sleep mode.
Key peripherals include a real‑time clock with calendar, master synchronous serial port supporting SPI and I²C, two USART modules, four 8/16‑bit timers/counters, and four capture/compare/PWM modules. Low‑power features comprise multiple oscillator modes, PLL options, brown‑out reset, watchdog timer, and extensive flash and EEPROM endurance specifications. This manual is written in Chinese.
| 16‑bit Σ‑Δ ADCs | Two independent converters with differential inputs and PGA (gain 1,2,4,8,32) |
|---|---|
| 10‑bit ADC | Up to 8 channels, 100 ksps sampling rate |
| LCD Driver | Supports up to 44 segments, 112‑176 pixels, multiple timing sources, 4 commons, operable in sleep mode |
| Real‑Time Clock with Calendar | User‑calibrated 32 kHz clock, ≤2 s/month drift |
| Flash Program Memory Endurance | 100 000 erase cycles (typical) |
| Data EEPROM Endurance | 1 000 000 erase cycles (typical) |
| Flash Retention | 100 years (typical) |
| High Drive Current | 25 mA source / 25 mA sink |
Yes, the LCD driver continues to function even when the MCU is in sleep mode.
The flash program memory can be erased up to 100 000 times (typical).
