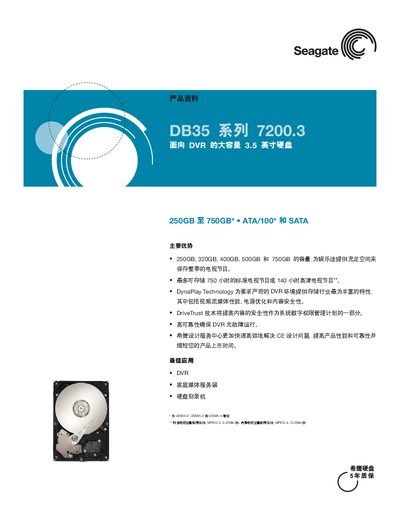

This document describes the features and characteristics of the DB35 Series 7200.3 3.5-inch hard drive for DVRs, including ATA/100 and SATA interface options, capacity range from 250GB to 750GB, storage capacity for TV programs, DynaPlay and DriveTrust technology, high reliability, and optimal applications.
The Seagate DB35 series is a high‑capacity 3.5‑inch hard drive aimed at DVRs, home media servers and other storage‑intensive applications. It provides up to 750 GB of space and features DynaPlay and DriveTrust technologies for video streaming performance, power optimization and data security.
The drives operate at 7200 RPM, include up to 16 MB cache, support SATA 3 Gb/s and Ultra ATA/100 interfaces, and deliver a maximum internal transfer rate of 1030 Mb/s. Detailed environmental, power and reliability specifications are provided for design integration. This manual is written in Chinese.
| Capacity | 250 GB – 750 GB |
|---|---|
| Spindle Speed | 7200 RPM |
| Cache | 16 MB |
| Max Internal Transfer Rate | 1030 Mb/s |
| Operating Temperature | 0 °C – 60 °C |
| SATA Power Consumption | 9.4 W |
The DB35 series is offered in capacities ranging from 250 GB up to 750 GB.
All DB35 drives run at 7200 RPM.
The maximum internal transfer rate is 1030 Mb/s.
