This product is VDS auxiliary products of field bus connection. It contains I/O modules, bridge connectors, M12x1 sockets (female), data end plugs, M18x1 sockets (female), M23x1 sockets (female), M23x1 plugs (male), data plugs, connection cables, data end plugs (male), protective covers and other products.

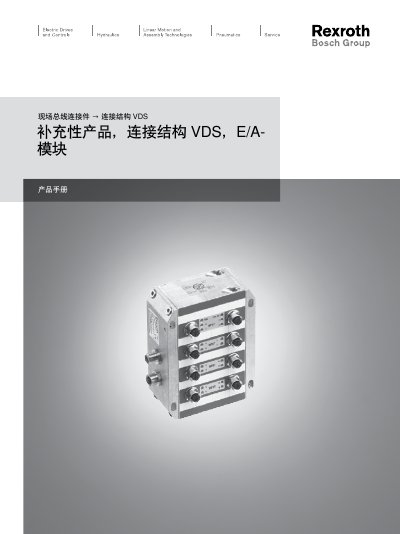

The document describes the VDS (Valve Drive System) connection structures and complementary E/A modules used in Bosch Rexroth pneumatic systems. It includes part numbers, connector types, and protective features for the various bridge and data‑end components.
Key information such as operating voltage, current consumption, protection rating, maximum cable length, and environmental temperature limits are listed, together with wiring diagrams and installation instructions for the M12 multi‑pin connectors. This manual is written in Chinese.
| Operating voltage | 24 V DC |
|---|---|
| Current consumption | 0.1 A |
| Protection rating | IP 65 |
| Maximum VDS line length | 10 m |
| Operating temperature range | +0°C to +50°C |
| Connector type | M12, 8‑pin |
| Housing material | Aluminum |
The VDS modules have an IP 65 protection rating.
The maximum allowed VDS line length is 10 m.
The modules operate at 24 V DC.
