This document is an instruction manual for Panasonic household refrigerator, which introduces the features and characteristics of the product, such as safe freezing, quick freezing, and delicious fresh freezing.

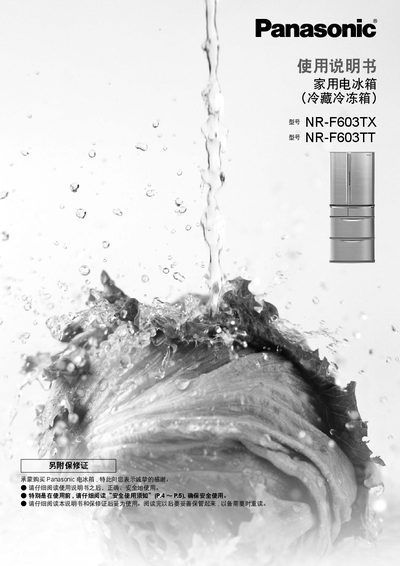

The Panasonic NR‑F603TX and NR‑F603TT are household refrigerators with a fresh‑freeze compartment. This user manual explains how to set up the appliance safely, operate its various modes, and maintain it for reliable performance.
Key sections cover safety precautions, placement and leveling, control panel functions, the Fresh Freeze feature, cleaning procedures, fault diagnosis, circuit diagram, technical specifications, and warranty information. This manual is written in Chinese.
| Total capacity | 487 L |
|---|---|
| Freezer compartment capacity | 84 L |
| Refrigerator compartment capacity | 304 L |
| Fresh‑freeze compartment capacity | 17 L |
| Rated voltage | 220 V |
| Rated current | 1.1 A |
| Energy consumption (24 h) | 1.50 kWh |
| Energy efficiency class | 4 |
| Refrigerant | R600a (70 g) |
| Noise level | 42 dB(A) |
| Weight | 95 kg |
| Dimensions (W×D×H) | 740 mm × 709 mm × 1798 mm |
