The DAS-ED series is a single-output 2.5W AC/DC module power supply with strong corrosion resistance, moisture resistance, and shock resistance. It has good thermal conductivity and high reliability. The product has high power density and ultra-thin design, with a small size. It supports constant current output and multiple protection function design, suitable for applications such as chargers and vehicle power supplies.

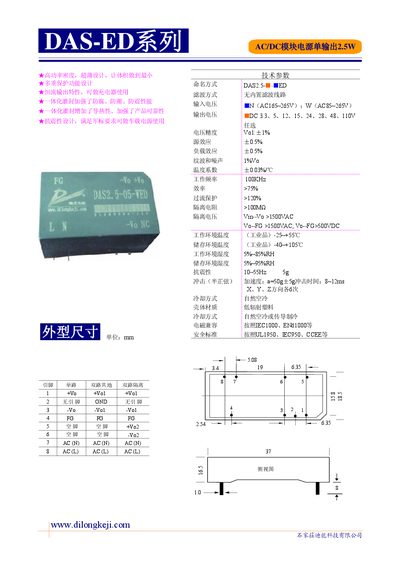

The DAS2.5-■-■ED is a compact 2.5 W AC/DC module power supply designed for industrial applications. It features a wide input voltage range, multiple selectable DC output levels, and a high efficiency exceeding 75 %.\n\nKey features include over‑current protection, high isolation resistance, robust shock and temperature ratings, natural air cooling, and a low‑radiation plastic enclosure. The design complies with IEC1000, EN61000, UL1950 and other safety standards, making it suitable for harsh environments and even military‑grade requirements. This manual is written in Chinese.
| Output Voltage Options | DC 3.3 V, 5 V, 12 V, 15 V, 24 V, 28 V, 48 V, 110 V (selectable) |
|---|---|
| Voltage Accuracy | ±1 % (source effect ±0.5 %, load effect ±0.5 %) |
| Ripple and Noise | 1 % Vo |
| Operating Frequency | 100 kHz |
| Over‑current Protection | >120 % |
| Isolation Resistance | >100 MΩ |
| Isolation Voltage | Vin‑Vo >1500 VAC, Vo‑FG >1500 VAC; Vo‑FG >500 VDC |
| Operating Temperature Range | -25 °C to +55 °C |
| Storage Temperature Range | -40 °C to +105 °C |
| Operating Humidity | 5 % – 85 % RH |
| Storage Humidity | 5 % – 95 % RH |
| Shock Resistance | 10 Hz – 55 Hz, 5 g |
| Cooling Method | Natural air cooling |
| Enclosure Material | Low‑radiation plastic |
The module can provide selectable DC outputs of 3.3 V, 5 V, 12 V, 15 V, 24 V, 28 V, 48 V, or 110 V.
