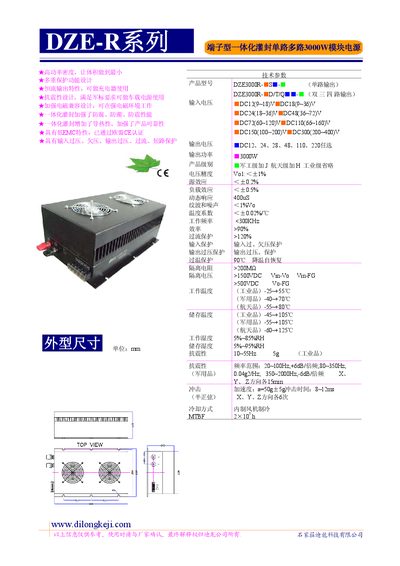

This product is a 3000W terminal type integrated encapsulated single-channel multi-channel module power supply, which has the characteristics of high power density, shock resistance design and multiple protection functions.
The Dilong DZE3000R series is a high‑power density, integrated sealed power supply offering up to 3000 W output. It features robust anti‑corrosion, anti‑moisture, and magnetic‑compatible designs for reliable operation in harsh environments.
The document provides detailed electrical parameters, input voltage options, temperature and humidity limits, cooling method, and reliability data such as MTBF, helping users install, operate, and maintain the unit safely. This manual is written in Japanese.
| Maximum Output Power | 3000 W |
|---|---|
| Input Voltage Options | DC12, DC24, DC28, DC48, DC110, DC220 |
| Operating Temperature (Industrial) | -25 °C to +5 °C |
| Operating Humidity | 59 %‑85 % RH |
| MTBF | 2 × 10⁴ h |
The DZE3000R can deliver up to 3000 W of output power.
It accepts DC12, DC24, DC28, DC48, DC110, and DC220 inputs.
The industrial version operates between –25 °C and +5 °C.
The unit has an MTBF of 2 × 10⁴ hours.
