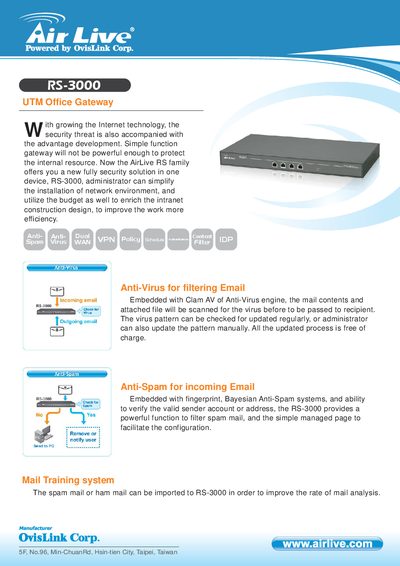

RS-3000 is a UTM gateway device from AirLive. This device has anti-virus, anti-malware, anti-spam, authentication, VPN, content filtering and other functions.
The RS-3000 UTM Office Gateway is a unified threat management appliance that offers anti‑virus, anti‑spam, intrusion detection, VPN, QoS, and content‑blocking functions to protect internal network resources. It includes web‑based management, user authentication via local, RADIUS or POP3 databases, and supports multiple WAN load‑balancing modes.
Hardware specifications include an Intel IXP 425 processor, 16 MB flash and 128 MB DRAM, multiple Ethernet ports, and RS‑232 console. The device supports up to 50 IPSec VPN tunnels, 100 local users, and operates in a temperature range of 0 °C to 60 °C with CE and FCC certifications.
| Processor | Intel IXP 425, 533 MHz |
|---|---|
| Memory | 16 MB Flash, 128 MB DRAM |
| Power Input | 100 ~ 250 VAC |
| Power Consumption | 80 W |
| Dimensions | 440 × 237 × 43 mm |
| LAN Ports | 1 × 10/100 Base‑T Ethernet RJ45 |
| WAN Ports | 2 × 10/100 Base‑T Ethernet RJ45 |
| Maximum IPSec VPN Tunnels | 50 |
| Maximum Local Users | 100 |
| Operating Temperature | 0 ~ 60 °C |
| Operating Humidity | 5 % ~ 95 % |
The RS-3000 can handle up to 100 local users for authentication.
