The WLA-9000AP is a dual‑radio wireless access point that supports IEEE 802.11a/b/g, Super A and Turbo A modes, offering up to 108 Mbps data rates and a variety of security features. It includes three RJ45 ports (one PoE‑enabled), detachable omni antennas, and a 220 MHz Atheros CPU with 8 MB flash and 32 MB SDRAM.

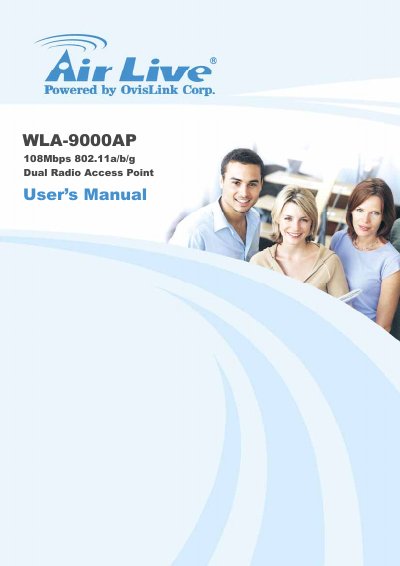

This manual guides users through hardware installation, initial configuration via web or CLI, detailed wireless and WAN settings, and multiple application examples. It also contains a full specifications table and a wireless network glossary for reference.
| CPU | 220 MHz Atheros |
|---|---|
| Memory | 8 MB Flash, 32 MB SDRAM |
| Antenna | 2 detachable omni antennas (R‑SMA) |
| Power Supply | 100–240 VAC input, 5.5 V / 2.5 A output (optional PoE 48 V / 0.4 A) |
| RJ45 Ports | 3 ports, one PoE‑enabled |
| Weight | 341 g (without antennas) |
| Dimensions | 191 × 145.5 × 29 mm |
The device provides 14 different wireless operation modes, including Access Point, Repeater, WDS Bridge, Client Infrastructure, Client Ad‑Hoc, and WISP Router.
There are three RJ45 ports; one of them can provide Power over Ethernet (PoE).
The manual recommends keeping at least 20 cm between the radiator (antenna) and your body.
