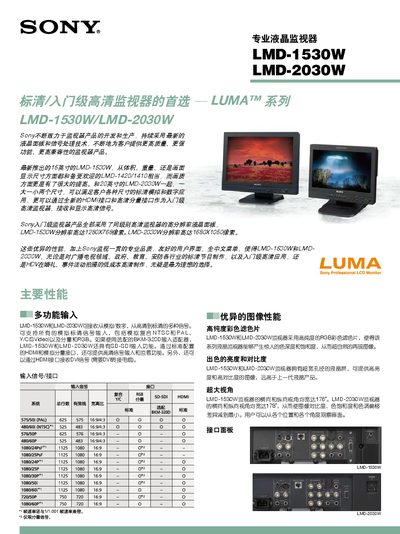

This document introduces the features and characteristics of Sony's latest monitor products LMD-1530W and LMD-2030W, including high-resolution LCD panels, excellent image performance, versatile input interfaces, and user-friendly operation.
The LMD-1530W (15‑inch) and LMD-2030W (20‑inch) are professional liquid‑crystal monitors designed for broadcast, government, education, and security applications. They offer high‑resolution panels—1280 × 768 for the 15‑inch model and 1680 × 1050 for the 20‑inch model—and a wide viewing angle for accurate color reproduction.
The monitors support a variety of input signals, including composite, S‑Video, component, RGB, HDMI and optional SD‑SDI via an adapter. They feature flexible mounting options with 19‑inch EIA rack compatibility and VESA‑standard holes for wall or ceiling installation. Detailed specifications such as power consumption, operating temperature, and dimensions are included for easy integration. This manual is written in Chinese.
| Resolution (LMD-1530W) | 1280 × 768 pixels |
|---|---|
| Resolution (LMD-2030W) | 1680 × 1050 pixels |
| Power consumption (typical) | ≈ 72 W |
| Maximum power consumption | ≈ 40 W |
| Power supply | AC 100‑240 V 50/60 Hz |
| Operating temperature | 0 to 35 °C |
| Weight (LMD-1530W, with stand) | ≈ 9.6 kg |
They accept analog and digital signals, including composite, S‑Video, component, RGB, HDMI, and optional SD‑SDI via the BKM‑320D adapter.
Both models can be rack‑mounted in a 19‑inch EIA standard rack or VESA‑mounted on a wall or ceiling using the provided 100 × 100 mm mounting holes.
The monitors operate from an AC power source ranging from 100 V to 240 V at 50/60 Hz.
They are designed to operate between 0 °C and 35 °C (recommended 20 °C‑30 °C).
