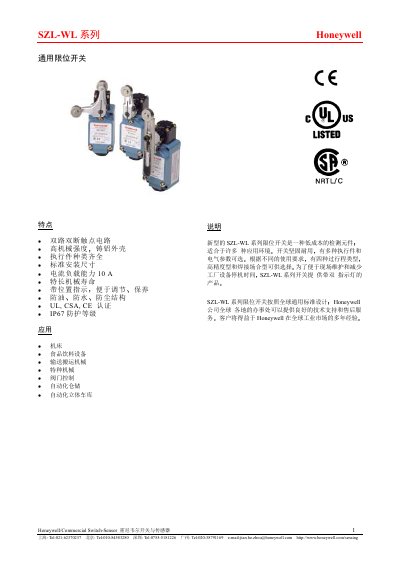

The SZL-WL series is Honeywell's commercial switch-sensor product. It features a dual-circuit double-break contact, high mechanical strength, various actuator options, standard installation size, 10A current load capacity, long mechanical life, position indicator, and oil, water, and dust resistance. It is suitable for applications in machine tools, food and beverage equipment, conveyors, special machinery, valve control, automated storage, and automated parking garages.
This manual describes the SZL‑WL series of Honeywell limit switches, covering the range of models, electrical and mechanical characteristics, and the intended applications. It includes product overviews, model classifications, and certification information.
The document also provides detailed installation guidance, wiring diagrams, operation notes, and safety precautions. Technical data such as contact rating, voltage options, temperature range, IP protection, and dimensions are listed for each model variant. This manual is written in Chinese.
| Voltage rating | 125 V / 250 V / 480 V |
|---|---|
| Operating temperature | -10 °C to +80 °C |
| Certifications | UL, CSA, CE |
The switches are rated for 125 V, 250 V, and 480 V.
It operates from –10 °C to +80 °C.
