XSXL/XSX/XSCL/XSC series pressure sensors are Honeywell's advanced silicon structure pressure sensors, which integrate silicon structure sensing technology, temperature compensation, calibration, and low-cost packaging. XSX series does not have temperature compensation, XSC series has temperature compensation, their design, low cost, small size, suitable for OEM applications.
The ASG pressure sensor series from Honeywell uses advanced silicon-structure technology. The XSX models have no temperature compensation, while the XSC models include temperature compensation and calibration, making them suitable for OEM applications. The series offers absolute, gauge, and differential pressure types with a variety of pressure ranges and accuracy options, and supports axial, radial, and axial‑biased venting configurations.

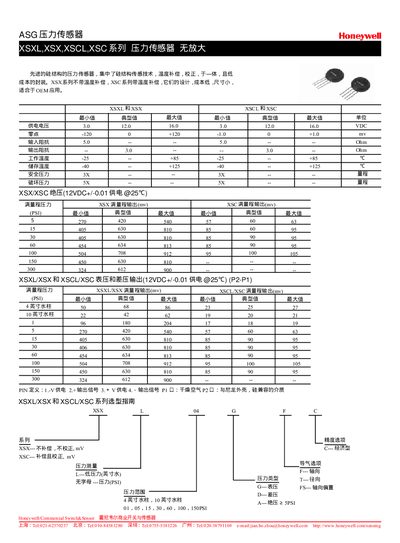

Key data include a typical supply voltage of 12.0 VDC (minimum 3.0 VDC, maximum 16.0 VDC), full‑scale pressure ranges up to 300 psi, typical output voltages from 420 mV to 630 mV for XSX models, and defined pin assignments for power and signal connections. Installation dimensions are provided for each model variant. This manual is written in Chinese.
| Typical supply voltage | 12.0 VDC |
|---|---|
| Typical output (XSX series) | 420 mV – 630 mV |
| Temperature compensation | XSC series includes; XSX series does not |
| Pin assignment | 1‑‑V supply, 2‑+ output, 3‑+V supply, 4‑‑ output |
The typical supply voltage is 12.0 VDC.
The XSC series includes temperature compensation, while the XSX series does not.
Pin 1 is –V supply, Pin 2 is + output signal, Pin 3 is +V supply, and Pin 4 is – output signal.
