Honeywell GT1 Series Hall Effect Gear Sensor User Manual

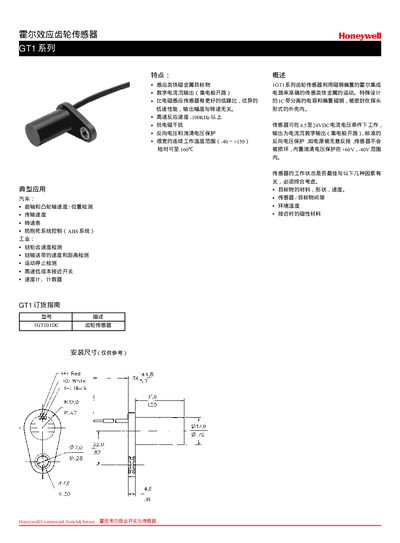

Honeywell GT1 Series Hall Effect Gear Sensor User Manual - cover page
Brand
Honeywell
Category
Other
Document type
User Manual
Language
Japanese
Pages
3
File format
PDF
File size
78 KB
Published
22 December, 2011
Updated
29 September, 2023
Model
GT1
MD5 checksum
344D70309D7487E0FF0C26AD862B4D68

About this manual

The GT1 series Hall effect gear sensor uses an integrated circuit to provide a digital output based on magnetic field detection. It operates from 4.5 V to 24 VDC and outputs a digital signal, with built‑in reverse polarity protection (+60 V / –40 V) to prevent damage.

The manual lists technical specifications such as supply voltage, output current, temperature range, leakage current, and mechanical dimensions. It also includes reference tables for sensor placement, mounting dimensions, and contact information for technical support. This manual is written in Japanese.

What's inside

  • Overview
  • Technical Specifications
  • Installation Dimensions
  • Reference Guide
  • Contact Information

Specifications

Supply voltage4.5 V to 24 VDC
Typical output current10 mA (max 20 mA)
Maximum sinking current40 mA
Operating temperature range-40 °C to +150 °C
Leakage current10 µA max

Frequently asked questions

What supply voltage does the GT1 sensor require?

The sensor operates from 4.5 V to 24 VDC.

What temperature range can the sensor operate in?

The sensor works from –40 °C to +150 °C.

Does the sensor have reverse polarity protection?

Yes, it includes reverse polarity protection from +60 V to –40 V.
