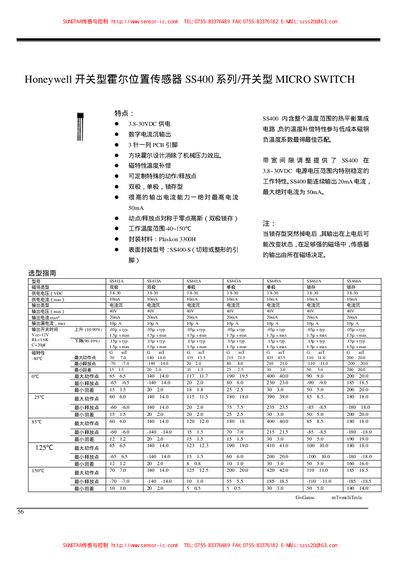

Honeywell switch type Hall position sensor SS400 series/switch type MICRO SWITCH selection guide, the main parameters include model, magnetic field type, operating voltage, operating current, output type, output voltage, output current, output leakage current, rise time, fall time, maximum action point, minimum release point, magnetic characteristics, etc.
The Honeywell SS400 series Hall effect sensors provide reliable magnetic field detection for a wide range of industrial applications. The document lists electrical parameters, mechanical dimensions, and typical performance curves for each model in the series.
In addition to the SS400 family, the sheet includes data for related sensors such as SS100, SS94B1, SS94A, and SS490, along with application notes and ordering information. The specifications are presented in tabular form with voltage, current, response time, and magnetic field conversion factors. This manual is written in Chinese.
| Operating voltage range | 3.8‑30 VDC |
|---|---|
| Maximum output current | 10 mA |
| Maximum voltage rating | 40 V |
| Typical response time | 0.05 s |
| Magnetic field conversion (Gauss to mT) | 1 Gauss = 0.1 mT |
The SS400 series operates from 3.8 VDC to 30 VDC.
The maximum output current is 10 mA.
Typical response time is 0.05 seconds.
They are rated for up to 40 V.
