This document introduces the precautions for use, including computer volume settings, battery power, system connection, system connection with the computer, operating system, CPU, speaker sound, computer warning sound and playing sound, pause recovery function, CD player or media player, music playback software running, plug connection, music playback software, Windows 2000, etc.

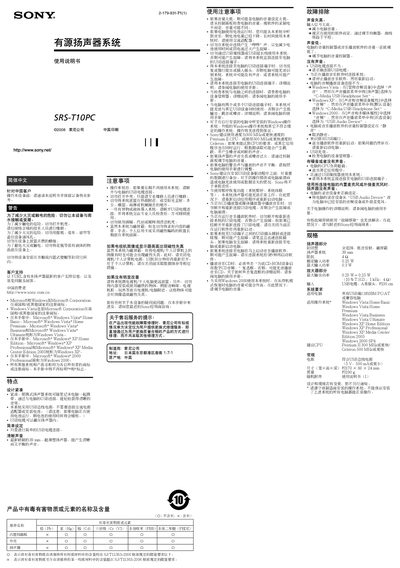

This manual covers safety precautions, installation steps, and USB connection guidelines for the Sony SRS‑T10PC portable speaker system. It explains how to install drivers for Windows Vista, XP, and 2000, and provides detailed instructions for connecting the speaker to a computer via USB.
The document also lists technical specifications, recommended computer requirements, and a troubleshooting section that addresses common issues such as no sound, distortion, and USB connection problems. This manual is written in Chinese.
| Speaker size | 39 mm |
|---|---|
| Rated input power | 0.25 W |
| Maximum input power | 0.3 W |
| Maximum output power (amplifier) | 0.25 W + 0.25 W |
| USB cable length | ≈30 cm |
| Power supply (USB bus) | 5 V, 500 mA |
| Dimensions (W×H×D) | ≈170 mm × 60 mm × 24 mm |
| Weight | ≈190 g |
Check that the USB cable is correctly connected and that the computer’s audio device is set to the C‑Media USB Headphone Set.
Adjust the computer’s volume, keep magnetic objects away from the speaker, and ensure the speaker is not placed near heat sources or direct sunlight.
