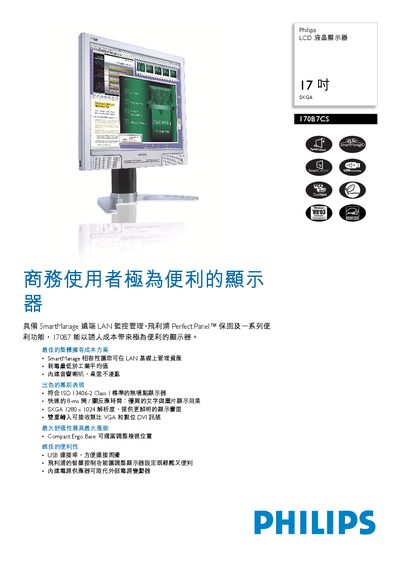

This document describes the features and characteristics of the Philips LCD monitor 170B7CS, including SmartManage remote LAN monitoring and management, Perfect Panel™ warranty, low power consumption, built-in speakers, zero defective pixel display, fast response time, high resolution, dual input, maximum comfort, USB ports, smart control functions, and built-in power supply.
The Philips 7087 is a 17‑inch SXGA LCD monitor with a 1280 × 1024 resolution, 8 ms response time, 300 cd/m² brightness, and 16.2 M color depth. It includes SmartManage LAN management, built‑in 2 W RMS speakers, and an Energy Star‑rated power supply.
The monitor offers VGA, DVI‑D and USB 2.0 inputs, a 3.5 mm audio output, and a Compact Ergo Base that allows tilt, swivel and height adjustments. On‑screen display settings can be controlled in multiple languages, and the unit complies with ISO 13406‑2 Class 1 standards. This manual is written in Chinese.
| Panel size | 17 inches |
|---|---|
| Resolution | 1280 × 1024 (SXGA) |
| Response time | 8 ms |
| Brightness | 300 cd/m² |
| Color depth | 16.2 M colors |
| Viewing angle | 160° × 160° |
| Power consumption | 33 W (typical) |
