The Philips 190E2FB is a 19-inch (48.3 cm) widescreen LCD monitor from the E series, offering high-definition display with its elegant design, SmartContrast and SmartImage Lite technologies. It supports high-definition content display with excellent image quality and features a stylish and sophisticated design that enhances any living space. It also incorporates green and energy-efficient design features.
The Philips 190E2FB is a 19‑inch LCD monitor featuring a 16:10 aspect ratio, SmartContrast 500,000:1, and SmartImage Lite technology for enhanced picture quality. It meets Energy Star 5.0 requirements and complies with RoHS and CE standards.

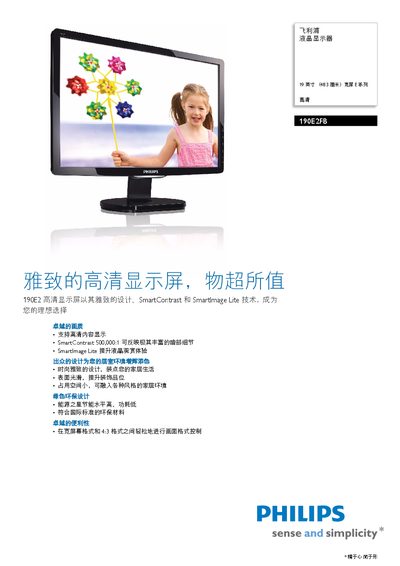

This manual covers installation, OSD controls, connectivity options (VGA and DVI), power consumption, physical dimensions, environmental specifications, and detailed technical data to help users set up and operate the monitor safely and efficiently. This manual is written in Chinese.
| Screen size | 19 inches (48.3 cm) |
|---|---|
| Resolution | 1440 x 900 @ 60 Hz |
| Brightness | 250 cd/m² |
| Contrast ratio (SmartContrast) | 500,000:1 |
| Pixel pitch | 0.285 mm × 0.285 mm |
| Viewing angles | 176° (H) / 170° (V) |
| Refresh rate | 30‑83 kHz (horizontal) / 56‑75 Hz (vertical) |
| Inputs | VGA (analog), DVI (digital) |
| Power consumption (operating) | <0.5 W |
| Power consumption (standby) | 0.8 W |
| Dimensions with stand | 443 mm × 368 mm × 170 mm |
| Weight with stand | 3.80 kg |
| Operating temperature | 0 °C to 40 °C |
| Storage temperature | -20 °C to 60 °C |
| Relative humidity | 20 %–80 % |
| MTBF | 50,000 hours |
The monitor features SmartContrast with a contrast ratio of 500,000:1.
In standby mode it consumes 0.8 W, and in normal operation it uses less than 0.5 W.
The monitor accepts both VGA (analog) and DVI (digital) signals.
With the stand, the monitor measures 443 mm × 368 mm × 170 mm.
