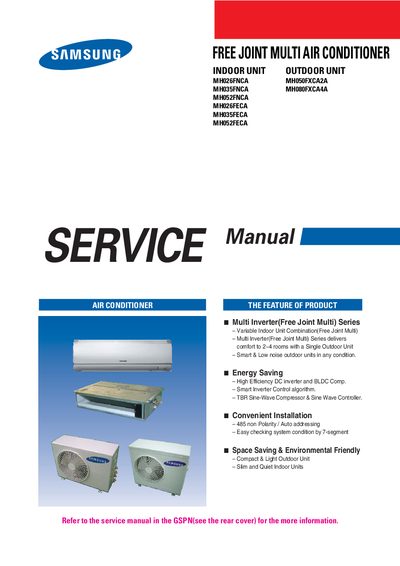

This document describes the features and characteristics of the multi inverter air conditioners of models MH026FNCA, MH050FXCA2A, MH035FNCA, MH080FXCA4A, MH052FNCA, MH026FECA, MH035FECA, MH052FECA. It includes variable indoor unit combination, high efficiency and energy saving, convenient installation, space saving, etc.
The manual covers Samsung's Multi Inverter (Free Joint Multi) series air conditioners, which can serve 2‑4 rooms from a single outdoor unit. It includes safety precautions, product specifications, installation guidance, wiring diagrams, and troubleshooting procedures.
Detailed sections provide disassembly/reassembly instructions, exploded views, parts lists, accessory options, and a Q&A section for common non‑trouble issues. The document also lists Samsung's global service network contacts. This manual is written in Chinese.
| Cooling capacity (Btu/hr) | 9,000 (MH026FNCA) |
|---|---|
| Power consumption (Cooling, W) | 30 W (MH026FNCA) |
| Noise level (Cooling, dB) | 32 dB (MH026FNCA) |
| Outer dimensions (mm) | 825 × 285 × 189 mm (MH026FNCA) |
MH050FXCA2A, MH052FNCA and MH052FECA indoor units cannot be connected to the MH050FXCA2A outdoor unit.
Installation must be performed by the dealer or an authorized service center.
Bad smells are usually caused by a filthy filter or external odor sources; clean the filter and ventilate the room.
Replace the batteries or remove obstacles that may block the signal; avoid strong lighting that can cause interference.
