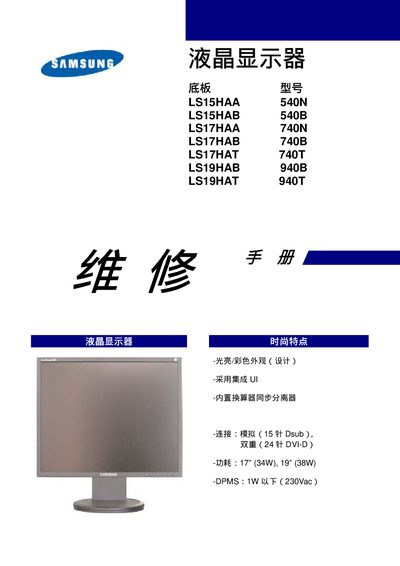

This document describes the fashionable features of repairing LCD monitors, including bright/colorful appearance design, integrated UI, built-in converter synchronous separator, etc. It also provides the bottom plate information of different models of LCD monitors.
This service manual provides safety precautions, repair procedures, and installation guidelines for Samsung LCD end boards. It lists model numbers, power specifications, and wiring details needed for proper maintenance and troubleshooting.
The document includes sections on general safety, ESD handling, power requirements, and reference information such as panel types and connector pinouts. It is intended for technicians performing repairs or replacements of the listed end board models. This manual is written in Japanese.
| Power Consumption | 34 W (LS15 series) / 38 W (LS19 series) |
|---|---|
| DPMS Power Consumption | ≤ 1 W at 230 V AC |
| Input Voltage | 90 V‑240 V AC |
The LS15 series consumes about 34 W and the LS19 series about 38 W.
DPMS uses 1 W or less when powered from 230 V AC.
The end board operates from 90 V to 240 V AC.
