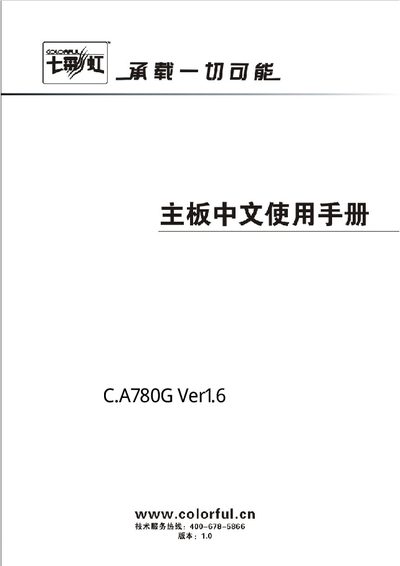

This document provides information on the hardware installation, driver installation instructions, and BIOS settings for the C.A780G Ver1.6 motherboard.
This manual covers the complete setup of the Colorful C.A780G motherboard, including unpacking, standard accessories, hardware installation, and detailed BIOS settings. It also provides guidance for firmware updates and system diagnostics.
Additional sections describe advanced chipset features, power‑management options, PCI/PNP configuration, and system health monitoring, helping users optimize performance and resolve common issues. This manual is written in Chinese.
| Chipset | AMD 780G+SB700 |
|---|---|
| Maximum Memory Speed | DDR2‑1066 |
| PCI Express Slots | 1 x16, 1 x1, 2 xPCI |
| SATA Ports | 6 Serial ATA III ports |
| Network Interface | Integrated Gigabit Ethernet |
| Network Speed | 10/100/1000 Mbps |
Download the BIOS upgrade program from the Colorful website, extract it, create a DOS boot disk, and run the update utility in DOS mode as described in the manual.
The package contains the C.A780G board, a SATA data cable, a SATA power adapter, an IDE ribbon cable, a driver CD, and a warranty card.
The board supports AMD AM2+ socket processors, including AMD Phenom series, AMD Athlon 64 EX, Athlon 64 X2, Athlon 64, and AMD Sempron CPUs.
