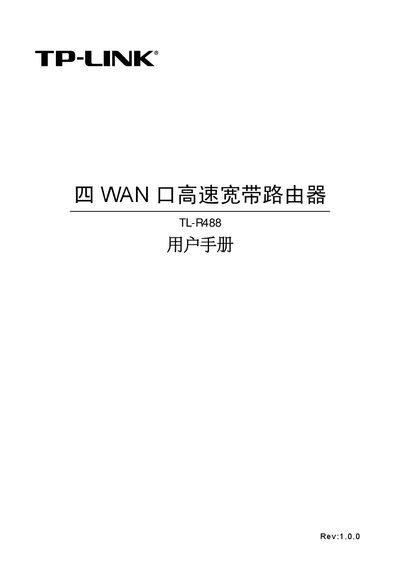

TL-R488 4 WAN port high speed broadband router user manual, introduces the product's hardware installation, quick installation guide, configuration guide, network parameters, DHCP server, forwarding rules, security settings, routing function, connection number limit, QoS, IP and MAC binding, peanut shell DDNS, switch function, system tools and other content.
This manual explains how to install, set up, and operate the TP‑Link TL‑R488 four‑WAN high‑speed broadband router, aimed at small‑to‑medium businesses and internet cafés.
It covers hardware installation, a quick‑start guide for basic network parameters, detailed configuration of WAN/LAN ports, load‑balancing, QoS, security settings, DHCP, virtual servers, and includes appendices with FAQs, TCP/UDP advanced settings, and technical specifications. This manual is written in Chinese.
| LAN ports | 1 x 10/100M RJ45 (Auto MDI/MDIX) |
|---|---|
| WAN ports | 4 x 10/100M RJ45 (Auto MDI/MDIX) |
| Power input | 220VAC, 50Hz |
| Power consumption | Maximum 4.0W |
| Operating temperature | 0°C – 40°C |
| Storage temperature | -40°C – 70°C |
| Dimensions | 250mm x 158mm x 44mm |
The router provides four WAN ports.
Maximum power consumption is 4.0 W.
The LAN port supports 10/100 Mbps with auto‑negotiation.
