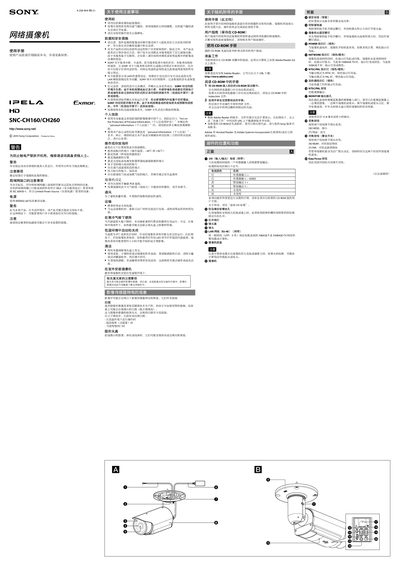

This manual introduces the use of a network camera, including precautions, data and security measures, personal information, operation and storage locations, camera settings, ventilation, and transportation.
This manual covers safety precautions, installation steps, and wiring details for the Sony SNC-CH160/CH260 network camcorder. It explains power requirements, PoE compatibility, and environmental limits such as temperature and humidity.
The guide also describes camera settings, lens focus and zoom controls, cleaning procedures, and indicator LEDs. Additional information on data security, personal information handling, and regular maintenance is included. This manual is written in Chinese.
| Maximum frame rate (JPEG) 30 fps at 1280×720 | 30 fps (1280 × 720) |
|---|---|
| Maximum frame rate (MPEG‑4) 30 fps at 1280×1024 | 30 fps (1280 × 1024) |
| Maximum frame rate (H.264) 20 fps at 1280×1024 | 20 fps (1280 × 1024) |
| Resolution (CH260) 1920×1080 at 16 fps (JPEG) | 16 fps (1920 × 1080) |
| Power over Ethernet (IEEE802.3af) maximum 129 W | 129 W |
| Operating temperature range | -30 °C to +50 °C |
The camcorder must be powered by equipment that complies with IEEE802.3af PoE standards.
Use a soft, dry cloth or a lightly dampened cloth with mild detergent; avoid alcohol or volatile solvents.
The device can operate from –30 °C up to +50 °C.
The LAN port must only be connected to devices that meet SELV and IEEE802.3af power requirements.
