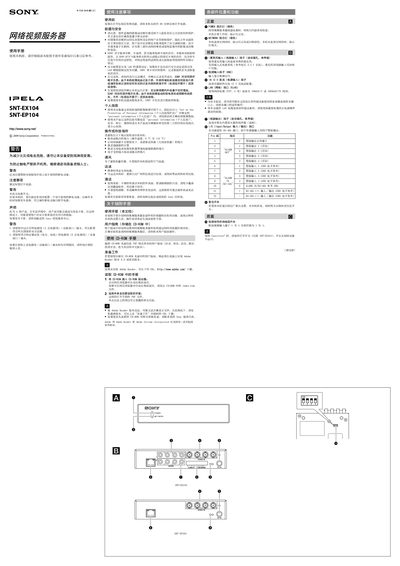

SNT-EX104 and SNT-EP104 Network Video Server User Manual. Introduces the features and usage notes of the product.
This manual describes the components, connectors, and recommended installation steps for the Sony SNT-EX104 and SNT-EP104 network video servers. It includes safety warnings, power requirements, and environmental guidelines to ensure reliable operation.
Detailed sections cover network connection, USB storage usage (EX104 only), sensor and alarm I/O, video and audio compression settings, and maintenance recommendations. The document also explains how to access the on‑device user guide via the included CD‑ROM. This manual is written in Chinese.
| Input voltage | 100‑240 V AC, 50/60 Hz |
|---|---|
| DC power input | 12 V, 2.5 A |
| Power consumption | ≤ 2.5 W (EX104 only) |
| Operating temperature | 0 °C to +45 °C |
| Dimensions (W×H×D) | 210 mm × 44 mm × 250 mm |
| Weight (EP104) | ≈ 1.3 kg |
| Weight (EX104) | ≈ 1.4 kg |
| Network port | 10BASE‑T/100BASE‑TX, auto‑negotiation (RJ‑45) |
| Video frame rate | Up to 830 fps |
| Audio compression formats | JPEG, MPEG‑4, H.264 |
| Sensor inputs | 4 |
| Alarm outputs | 4 |
| Camera control interface | RS‑485 (1 channel) |
Connect the supplied AC‑DC adapter that provides 12 V DC at up to 2.5 A.
The unit can operate from 0 °C up to +45 °C.
The device provides four sensor input channels.
There are four alarm output terminals.
