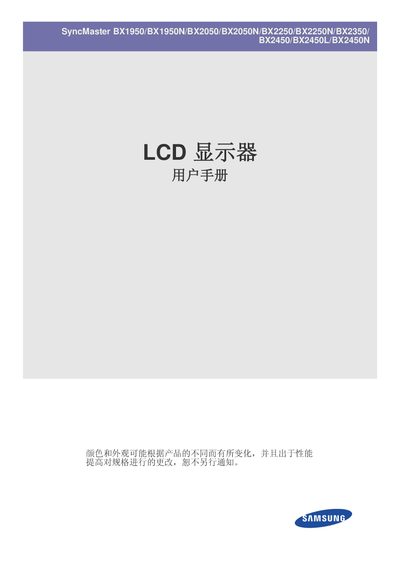

SyncMaster BX1950/BX1950N/BX2050/BX2050N/BX2250/BX2250N/BX2350/BX2450/BX2450L/BX2450N LCD display user manual. This manual introduces the product features and usage methods.
The manual begins with safety precautions, handling, and maintenance advice for the SyncMaster LCD monitors, followed by detailed installation instructions, including mounting brackets, HDMI connections, and Kensington lock usage. It also covers setting the optimal resolution, using the on‑screen display menu, and installing optional software such as Natural Color, MagicTune, and MultiScreen.
Later sections list power‑saving features, full technical specifications (screen size, resolution, input types, operating temperature, etc.), and a troubleshooting guide with common fault checks and FAQs. Contact information for Samsung service centers worldwide is provided at the end. This manual is written in Chinese.
| Screen size | 18.5 inches (47 cm) |
|---|---|
| Display area | 40.98 cm (H) × 23.04 cm (V) |
| Pixel pitch | 0.300 mm (H) × 0.300 mm (V) |
| Native resolution | 1360 × 768 @ 60 Hz |
| Maximum pixel clock | 89 MHz |
| Input signals | Analog RGB, DVI‑D digital RGB |
| Power supply | 100 – 240 V |
| Operating temperature | 10 °C – 40 °C |
| Storage temperature | -20 °C – 45 °C |
| Dimensions (without stand) | 45.33 × 28.15 × 6.81 cm |
The monitor is designed to operate between 10 °C and 40 °C (50 °F – 104 °F).
