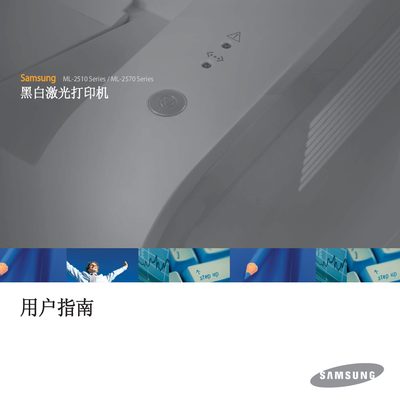

This document is a reference manual for the Samsung ML-2510 Series/ML-2570 Series printers. The manual provides basic information and user guide for the products, including model names, trademarks, technical specifications, and contact information.
This manual covers everything needed to install and use Samsung's ML-2510, ML-2570 and ML-2571N monochrome laser printers. It includes an introduction to the printer, a description of the control panel, and guidance on locating additional information.
The guide also details basic configuration, software installation, network setup, media loading, routine maintenance, and a comprehensive troubleshooting section, plus full technical specifications for each model. This manual is written in Chinese.
| Print speed (A4) | 24 ppm (25 ppm Letter) |
|---|---|
| Resolution | 1200 × 600 dpi (ML‑2510) / 1200 × 1200 dpi (ML‑2570, ML‑2571N) |
| Warm‑up time | < 15 seconds |
| First‑page time | 9 seconds |
| Average power consumption | 390 W (ML‑2510) / 400 W (ML‑2570, ML‑2571N) |
| Energy‑saving mode power | ≤ 6.5 W (ML‑2510) / ≤ 8.5 W (ML‑2570, ML‑2571N) |
| Noise level (standby / printing) | ≤ 35 dBA (standby) / ≤ 53 dBA (printing) |
| Toner cartridge life | ≈ 3 000 pages (5 % coverage) |
| Monthly duty cycle | up to 10 000 pages |
| Weight | 8.9 kg (printer only) |
| Dimensions (W × D × H) | 13.9 × 11.7 × 9.7 in (354 × 297 × 246 mm) |
| Operating temperature | 10 °C – 32 °C (50 °F – 90 °F) |
| Operating humidity | 20 % – 80 % RH |
| Memory | 8 MB (ML‑2510) / 32 MB (ML‑2570, ML‑2571N) |
The printers can print up to 24 pages per minute on A4 paper (25 ppm on Letter size).
All three models have a 10/100 Base‑TX Ethernet port; the ML‑2571N includes a built‑in network interface, while the ML‑2510 and ML‑2570 require an optional external wired network interface server.
Enable the economy (省墨) mode in the printer driver to extend toner life and lower printing costs.
The printer operates on 110‑127 VAC (5.5 A) or 220‑240 VAC (3 A) at 50/60 Hz.
