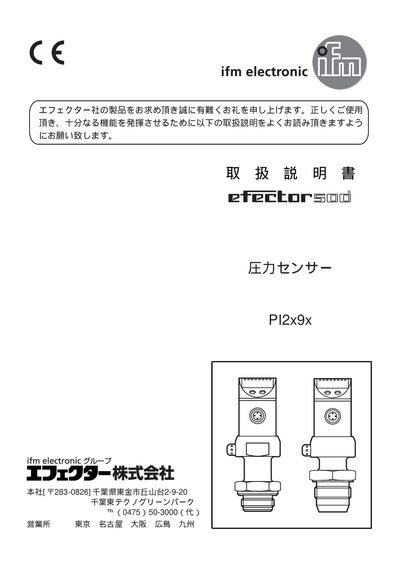

The PI2x9x pressure sensor manual explains safe usage, required precautions, and the environments in which the sensor can be applied. It warns against exceeding the allowable pressure and outlines proper handling and disposal.
The document details the sensor's functions, installation steps, connection wiring, operation and programming modes, as well as technical specifications such as measurement ranges, allowable pressures, and material construction. It also includes parameter tables and dimension drawings for various PI2x9x models. This manual is written in Japanese.
| Measurement range (PI2x93) | -0.1 MPa to +2.5 MPa |
|---|---|
| Allowable pressure (PI2x93) | 10 MPa |
| Burst pressure (PI2x93) | 35 MPa |
| Material | SUS316L, ceramic, PTFE |
The sensor must not be subjected to pressures above 2.5 MPa; exceeding this can cause damage.
Press and hold the Set button for more than 5 seconds to enter programming mode, then adjust the value and confirm with the Mode/Enter button.
The green LEDs show the current pressure value in units corresponding to the lit LED.
No, the sensor must not be incorporated into safety circuits intended for human protection.
