This manual introduces the features, installation, connection and use of the Opto's photoelectric sensors.

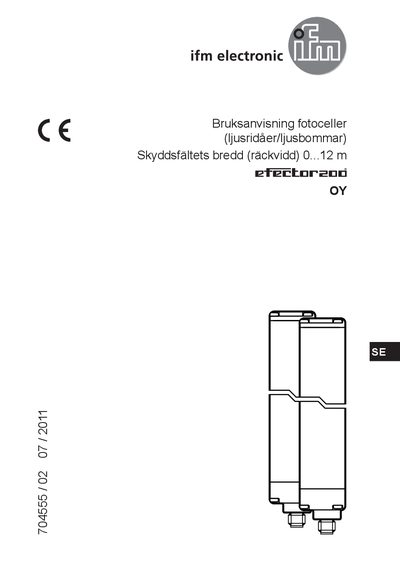

This manual provides safety and compliance information for the ifm OY photocell (light curtains) system, including required markings, warnings and the applicable standards such as EN 60204, EN 999, ISO 13855 and IEC 61496. It also details the components supplied, the functional principles of the transmitter and receiver, and the definition of the protection field.
Installation guidelines cover mounting options, electrical connections, and the calculation of the minimum safety distance. The document includes troubleshooting advice, maintenance recommendations and references to the EU Declaration of Conformity. This manual is written in Swedish.
| Protection field width (range) | 0–12 m |
|---|---|
| Maximum total length | 1263 mm |
The protection field can be set up to a width of 0 to 12 meters.
