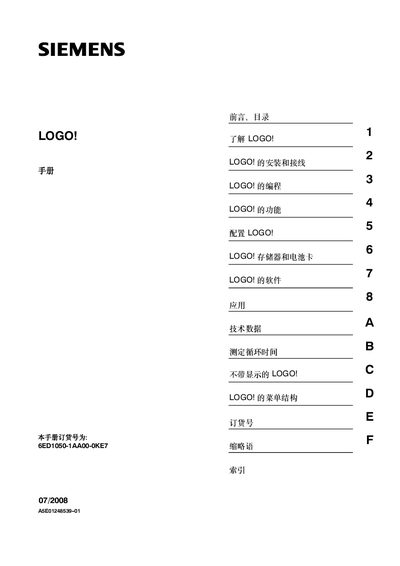

LOGO! Manual provides information on how to create circuit programs and how to install and use the LOGO! 0BA6 basic module, LOGO! TD (text display) and LOGO! expansion modules. LOGO! has a wide range of applications. It is powerful and easy to use, and is very cost-effective in almost any application area.
This manual covers all aspects of the LOGO! 0BA6 series, including safety guidelines, hardware installation, wiring diagrams, and detailed programming instructions. It also describes the configuration of storage and battery cards, software tools, and various application examples.
The document includes technical data, a full list of function blocks, and reference tables for analog and digital I/O, making it a comprehensive resource for qualified personnel who install, configure, and maintain the LOGO! controller. This manual is written in Chinese.
| Storage capacity | 32 KB |
|---|---|
| Number of program blocks | 200 |
| Analog output range | 0‑20 mA (AM2 AQ module) |
The manual is applicable to the LOGO! 0BA6 series of devices.
The storage card provides 32 KB of memory, four times the capacity of earlier models.
It supports an AM2 AQ analog output with a 0‑20 mA current loop.
Up to 200 program blocks are available.
