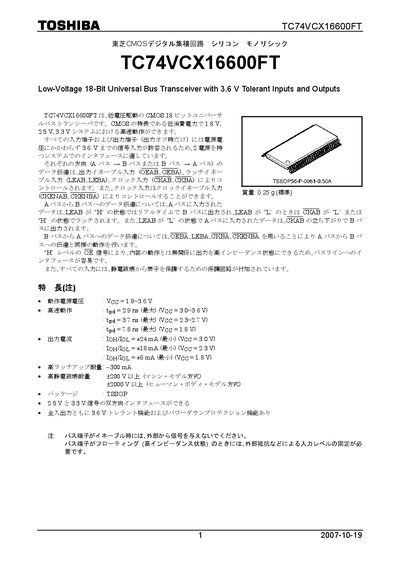

TC74VCX16600FT is a low voltage driven CMOS 18-bit universal bus transceiver with 3.6V tolerant inputs and outputs. All inputs and outputs (only when the output is off) allow 3.6V signal input regardless of the power supply voltage and are suitable for interfacing in systems with 2 power supplies.
The TC74VCX16600FT is a low‑voltage 18‑bit universal bus transceiver designed for 1.8 V, 2.5 V and 3.3 V systems. All input and output pins tolerate signals up to 3.6 V regardless of supply voltage, making it suitable for dual‑supply interfaces. The device includes protection circuits against electrostatic discharge and features high‑speed operation with propagation delays as low as 2.9 ns.
The document provides pin configurations, truth tables for A‑bus to B‑bus data transfer, electrical characteristics, absolute maximum ratings, and package dimensions (TSSOP56). It also contains handling and safety guidelines for reliable integration into electronic designs. This manual is written in Japanese.
| Supply voltage (Vcc) | 1.8‑3.6 V |
|---|---|
| Propagation delay (tpd, max) | 2.9 ns |
| Output current IoH/IoL (min) | 24 mA |
The device operates with a supply voltage (Vcc) from 1.8 V to 3.6 V.
The maximum propagation delay is 2.9 ns when Vcc is between 3.0 V and 3.6 V.
The output current capability is at least 24 mA for both high and low states.
