Microchip PIC16F627A/628A/648A Datasheet

This document describes the features and characteristics of Microchip Technology Inc.'s PIC16F627A/628A/648A 8-bit CMOS flash microcontrollers with NanoWatt Technology.

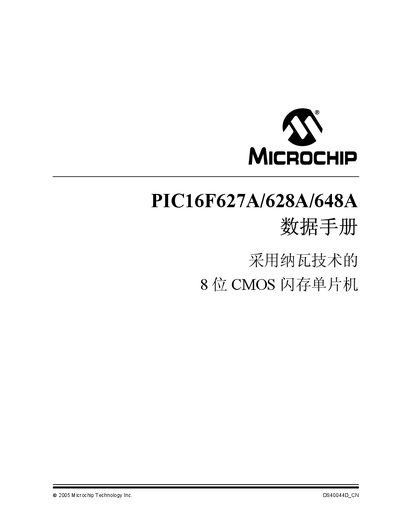

Microchip PIC16F627A/628A/648A Datasheet - cover page
Brand
MICROCHIP
Category
Other Electronics
Document type
Datasheet
Language
Chinese
Pages
180
File format
PDF
File size
2.9 MB
Updated
29 September, 2023
MD5 checksum
A3A801B14DA1947D2E95F5BA252E2CA5

About this manual

The PIC16F627A/628A/648A series are 18‑pin 8‑bit CMOS flash microcontrollers offering low cost, low power and high performance. They feature a RISC core, 8‑level hardware stack, multiple oscillator options and a rich set of peripherals such as timers, comparators, USART and PWM.

The document provides detailed specifications, pin diagrams, memory organization, electrical characteristics and development support information for the three device variants, helping designers select the right part and implement it in battery‑powered or sensor applications. This manual is written in Chinese.

What's inside

  • Overview
  • Device Types
  • Architecture Overview
  • Memory Organization
  • I/O Ports
  • Timer Modules
  • Capture/Compare/PWM Module
  • Comparator Module
  • USART Module
  • Electrical Specifications

Specifications

Maximum clock frequency20 MHz
Flash program memory (words)1024 / 2048 / 4096
Operating voltage range2.0 V – 5.5 V (3.0 V – 5.5 V for some devices)
Standby current at 2.0 V100 nA (typical)

Frequently asked questions

What is the maximum clock speed of the PIC16F627A/628A/648A?

The devices operate up to 20 MHz.

How many I/O pins does each device provide?

Each variant has 16 I/O pins.

What is the standby current at 2.0 V?

Typical standby current is 100 nA when VDD is 2.0 V.
