The ZSC-3000 series DC voltage regulator is a compact three-phase full-bridge, 0-500VDC output voltage, 0-100A rated output current DC voltage regulator. It has the characteristics of small size, compact structure, easy installation, easy debugging, high adjustment accuracy, wide adjustment range, strong anti-interference ability, good output linearity, sensitive protection action and safe and convenient operation.
The ZSC‑3000 series is a compact wall‑mounted dual‑loop analog DC tuning controller. It offers high precision, wide regulation range, strong anti‑interference capability and can be used for single‑unit or multi‑unit synchronized regulation as well as a DC stabilized power source.

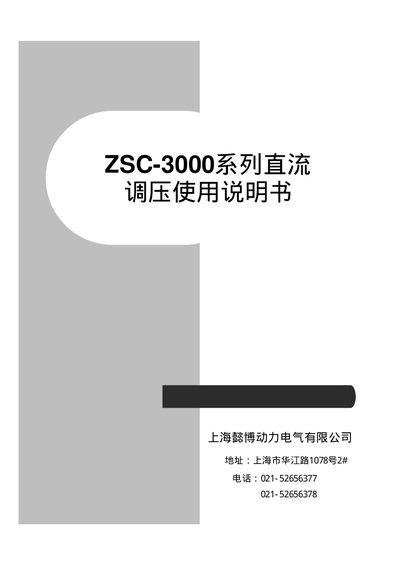

The manual provides an overview of the device, detailed technical specifications, installation guidelines, wiring diagrams, control and adjustment procedures, and a fault‑diagnosis guide to help users set up and maintain the equipment safely. This manual is written in Chinese.
| Control power voltage | 3~380 Vac ±10% / 45~65 Hz |
|---|---|
| Power consumption | ≈ 10 W |
| Overload capacity | 150 % of rated current for < 30 s |
Use potentiometer W5 (ZERO SET) to set the device’s output zero point.
