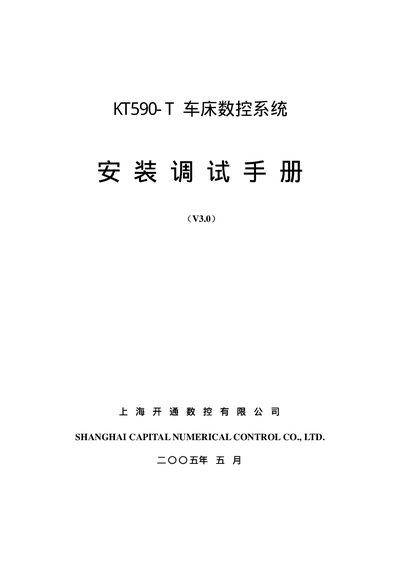

This manual introduces the installation and debugging methods of KT590-T CNC lathe system, mainly including installation, fixation, power connection, interface, debugging and other contents.
This manual provides step‑by‑step instructions for installing the KT590‑T CNC controller on a machine tool, including mechanical mounting, environmental requirements, and safety precautions. It details the required power source, grounding methods, and how to connect the various signal and interface connectors.
The document also describes the signal input/output assignments, wiring diagrams, parameter settings, and RS‑232 communication settings, enabling technicians to configure and troubleshoot the system efficiently. This manual is written in Chinese.
| Physical dimensions | 412 mm × 204 mm |
|---|---|
| Power supply | 220 V ±10 %, 50 Hz ±1 Hz, 100 VA |
| Operating temperature range | 0 °C – 50 °C |
| Maximum humidity | ≤90 % RH |
| Connector type A7 | 37‑pin connector |
The controller requires a 220 V ±10 % AC supply at 50 Hz ±1 Hz, with a dedicated 100 VA transformer.
