SMS1208F LCD display module is a standard digital pen segment type liquid crystal display module produced by Sunsman Electronics Co., Ltd. It can display 12 digits and 3 time separators and 9 decimal points. Low power consumption, with MCU single chip microcomputer using three-wire serial port connection, widely used in hand-held instruments and meters, intelligent display instruments.
The SMS1208F is a standard LCD display module that can show 12 digits, three time separators and nine decimal points. It operates at a low power consumption and connects to an MCU via a three‑wire serial interface (B type).

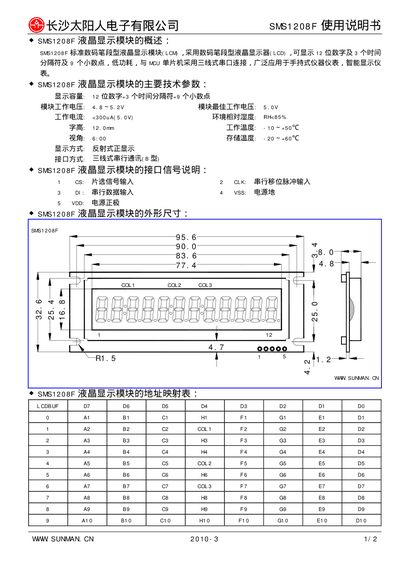

This manual lists the electrical parameters, pin definitions (CS, CLK, DI, VSS, VDD), and timing diagram for the module, as well as the physical dimensions and environmental limits. This manual is written in Chinese.
| Supply current | <300 µA (5.0 V) |
|---|
The serial interface uses CS, CLK, DI, VSS and VDD pins.
The current is less than 300 µA at 5.0 V.
