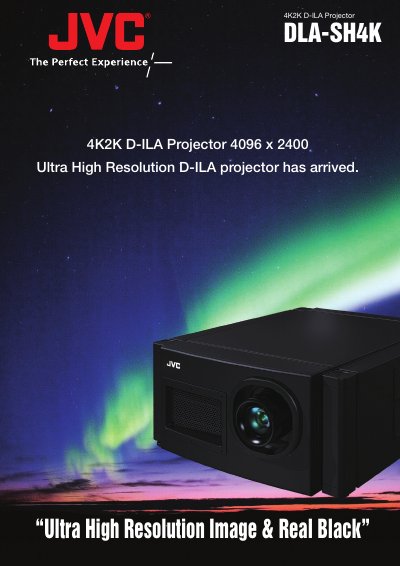

This is a 4K2K D-ILA projector that uses a 1.27-inch miniature 4K2K D-ILA device to deliver 10 megapixel (4096 x 2400 pixel) high-definition display images. The projector is also compatible with 4K digital cinema and offers full HD, four-screen window display, and 4x enlarged WUXGA images for high-end design and CAD applications.
The JVC GL‑MS4015SZG and GL‑MS4011SG are ultra‑high‑resolution 4K2K D‑ILA projectors that deliver a native 4096 × 2400 pixel image with a contrast ratio of 10,000:1. They use an 825 W Xenon lamp that can be adjusted between 660 W and 825 W in eight steps, providing up to 3500 lumens of light output. The projector offers four dual‑link DVI inputs, an Ethernet port, RS‑232C and USB service ports, and supports multiple screen modes including single, dual and four‑screen configurations.
Designed for flexible installation, the units provide motorized horizontal and vertical lens shift (±25%/±5% for short lenses, ±50%/±15% for zoom lenses) and can be inclined up to ±90°. Applications include medical institutions, design studios, museums, broadcasting studios, simulators and large‑venue presentations. This manual is written in Chinese.
| Effective resolution | 4096 x 2400 |
|---|---|
| Light source type | Xenon lamp |
| Lamp power range | 660 W – 825 W |
| Light output | 3500 lm |
| Contrast ratio (typical) | 10,000:1 |
| Power consumption | < 1.5 kW |
| Horizontal lens shift | ±25% (zoom) / ±5% (short) |
| Vertical lens shift | ±50% (zoom) / ±15% (short) |
| Dimensions (W×D×H) | 600 × 827 × 340‑390 mm |
| DVI inputs | 4 dual‑link DVI‑D |
| Ethernet ports | 1 RJ45 |
| RS‑232C ports | 1 |
| USB service ports | 1 |
The projector delivers a native resolution of 4096 × 2400 pixels.
The unit includes four dual‑link DVI‑D inputs.
