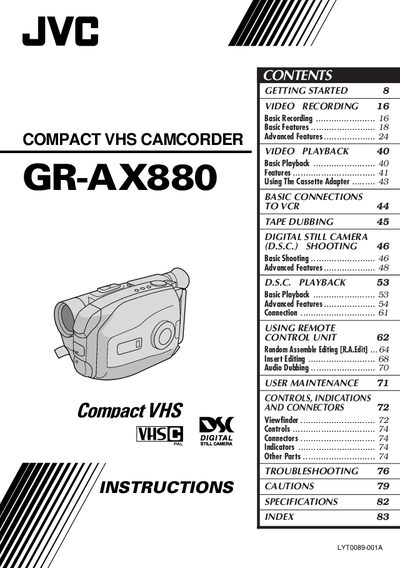

This document is an instruction manual for the JVC Compact VHS camcorder, including basic recording, playback, and connection functions, as well as advanced features and user maintenance.
This manual covers all aspects of using the JVC GR-AX880 Compact VHS Camcorder, including getting started, video recording and playback, digital still camera functions, and advanced editing features. It also includes sections on basic connections, tape dubbing, remote control operation, and troubleshooting.
Safety precautions, battery handling, and power supply information are detailed, with step‑by‑step instructions for attaching and charging the battery pack, using the REFRESH function, and performing routine maintenance.
| Battery pack BN‑V12U charge time | approx. 1 hr 10 min |
|---|---|
| Battery pack BN‑V12U recording time | 65 min (40 min low‑power mode) |
| Battery pack BN‑V22U charge time | approx. 2 hrs 10 min |
| Battery pack BN‑V22U recording time | 135 min (85 min low‑power mode) |
| Battery pack BN‑V25U charge time | approx. 2 hrs 40 min |
| Battery pack BN‑V25U recording time | 180 min (110 min low‑power mode) |
Align the marks and slide the battery pack in the direction of the arrow until it locks in place.
It fully discharges the battery pack before recharging it.
Make sure the camcorder’s power is turned off before detaching the power source.
