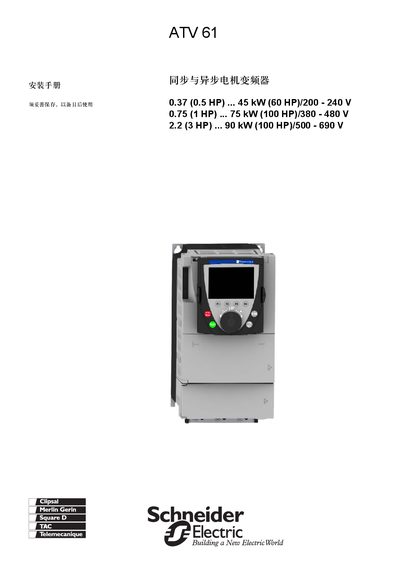

This installation manual introduces the installation steps and precautions for ATV 61 synchronous and asynchronous motor inverters
This guide provides essential safety information for the Schneider Electric ATV61 motor frequency transformer, including warnings about potential hazards, symbols used, and required precautions before any installation or maintenance work. It also outlines the preparation steps, such as verifying the correct model and ensuring the environment meets the specified conditions.
The document details the installation procedure, covering mounting options (wall‑mounted or floor‑standing), wiring diagrams, power and control terminal connections, EMC board installation, LED indicators, and compliance with relevant standards (EN 954‑1, IEC/EN 61508). Technical data such as power ratings, dimensions, and weight are listed in the specifications sections. This manual is written in Chinese.
| Power rating 0.37 HP | 45 kW (60 HP) / 200‑240 V |
|---|---|
| Power rating 0.75 HP | 75 kW (100 HP) / 380‑480 V |
| Power rating 2.2 HP | 90 kW (100 HP) / 500‑690 V |
Installation conditions and temperature limits are specified in the sections titled “安装条件与温度条件” and must be followed to ensure proper operation.
