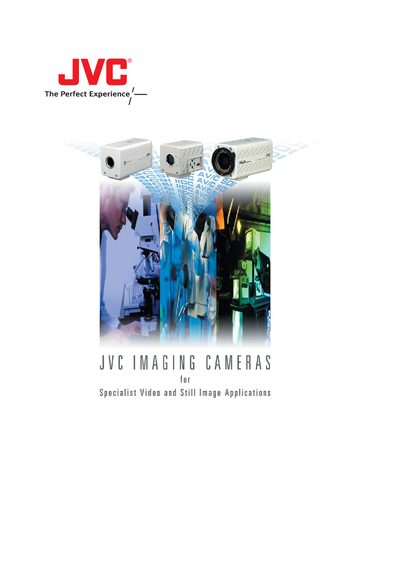

JVC KY-F560U(ntsc)/F560E (pal)Manual

JVC’s versatile, high-performance video capture devices meet the needs of various customer groups and industries.

Brand: JVC
Document type: User Manual
Language: English
Pages: 12
File format: PDF
File size: 1.4 MB
Published: 13 November, 2011
Updated: 30 September, 2023
MD5 checksum: D8F7548B1D097B90B2B7165BEA9C76AF
PDF: JVC KY-F560U(ntsc)/F560E (pal)Manual PDF

About this manual

The KY-F560 is a 1/2" 3‑CCD video camera designed for industrial, broadcast, and medical imaging applications. It features a 12‑bit ADC, 24‑bit DSP, and a bayonet lens mount for high‑quality colour reproduction and dynamic range.

The manual details the camera's interfaces (composite, Gen‑Lock, optional SDI, IEEE1394), remote‑control options (RS‑232C and SDI), power requirements, and the range of accessories and studio kits that can be added to create a complete imaging system.

What's inside

Camera Overview
Specifications
Interfaces and Outputs
Accessories and Kits
Remote Control and PTZ
Power and Environmental
Software and Image Acquisition

Specifications

Horizontal resolution (NTSC)	850 TV lines
Signal‑to‑Noise ratio (NTSC)	64 dB
Dynamic range	≥ 400 %
Sensitivity	F13, 2000 lx
Power consumption (camera only)	8 W

Frequently asked questions

What is the horizontal resolution of the KY-F560?

The camera achieves a horizontal resolution of 850 TV lines in NTSC mode (800 TV lines in PAL mode).
