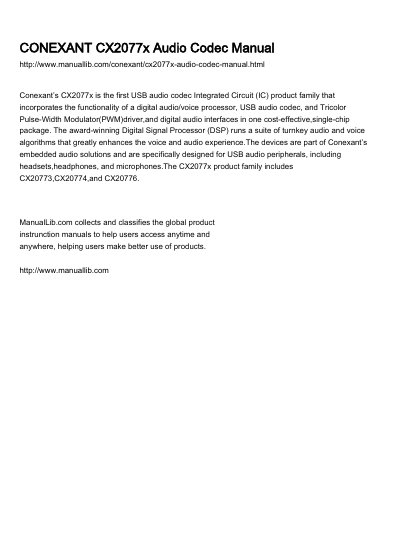

Conexant CX2077x USB Audio Codec IC Datasheet

Conexant

Brand: Conexant
Category: Audio Codec
Document type: Datasheet
Language: English
Pages: 3
File format: PDF
File size: 184 KB
Published: 27 February, 2014
Updated: 25 September, 2023
MD5 checksum: 9EC3077A5D1977D2504A08F5F50E3ABD
PDF: Conexant CX2077x USB Audio Codec IC Datasheet PDF

About this manual

The Conexant CX2077x is a cost-effective, single-chip USB audio codec Integrated Circuit (IC) product family. It incorporates the functionality of a digital audio/voice processor, USB audio codec, and Tri-color Pulse-Width Modulator (PWM) driver in one package. The family includes the CX20773, CX20774, and CX20776 models.

What's inside

Key Features
CX2077x Features
Applications
CX2077x Product Comparison
System Block Diagram
Conexant Product Portfolio

Specifications

USB Audio Codec	USB 2.0 Full Speed
Sampling Rate	8, 16, 24, 32, 44.1, 48 kHz
DAC/ADC	2 DAC/ 2 ADC
LED Driver	Tri-color (RGB) PWM
Package	48-pin and 64-pin QFN
Headphone Driver Power	35 mW

Frequently asked questions

What models are included in the CX2077x product family?

The CX2077x product family includes the CX20773, CX20774, and CX20776.

Does the CX2077x include an integrated DSP?

Yes, it is the first USB audio codec IC family to incorporate a digital audio/voice processor.

What are the available package types?

The device is available in 48-pin and 64-pin QFN packages.
