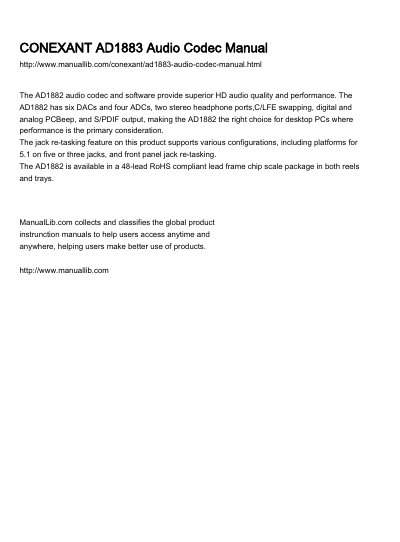

The AD1882 audio codec and software provide superior HD audio quality and performance. The AD1882 has six DACs and four ADCs, two stereo headphone ports,C/LFE swapping, digital and analog PCBeep, and S/PDIF output, making the AD1882 the right choice for desktop PCs where performance is the primary consideration. The jack re-tasking feature on this product supports various configurations, including platforms for 5.1 on five or three jacks, and front panel jack re-tasking. The AD1882 is availabl
The Conexant AD1883 is a SoundMAX HD Audio Codec designed for embedded systems and point-of-sale applications. It features two independent 192 kHz stereo DAC pairs and two 192 kHz stereo ADC pairs, supporting simultaneous recording and playback of two stereo channels. The device includes an S/PDIF output, a 2-channel digital microphone interface, and digital and analog PCBeep functionality.
| Resolution (DAC/ADC) | 24 Bits |
|---|---|
| Sample Rate Range | 8 kHz through 192 kHz |
| Line-Out Drive THD + N | -84 dB |
| Headphone Drive THD + N | -74 dB |
| Microphone/Line-In THD + N | -78 dB |
The AD1883 supports sample rates from 8 kHz through 192 kHz for both DACs and ADCs.
Yes, the AD1883 includes an S/PDIF output supporting sample rates from 44.1 Hz through 192 kHz.
The Analog-to-Digital Converters in the AD1883 have a resolution of 24 bits.
