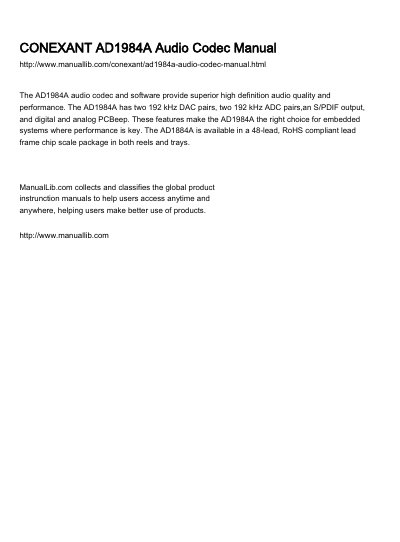

The AD1984A audio codec and software provide superior high definition audio quality and performance. The AD1984A has two 192 kHz DAC pairs, two 192 kHz ADC pairs,an S/PDIF output, and digital and analog PCBeep. These features make the AD1984A the right choice for embedded systems where performance is key. The AD1884A is available in a 48-lead, RoHS compliant lead frame chip scale package in both reels and trays.
The Conexant AD1984A is a high-definition audio codec designed for embedded systems. It features two 192 kHz DAC pairs and two 192 kHz ADC pairs, along with an S/PDIF output. The device supports simultaneous recording of two stereo channels and playback of two stereo channels, offering independent sample rates from 8 kHz to 192 kHz.
| Resolution (ADC/DAC) | 24 Bits |
|---|---|
| Dynamic Range (Line-Out) | 101 dB |
| Signal-to-Noise Ratio (Headphone) | 101 dB |
| Operating Temperature Range | 0°C to 70°C |
The device operates within a temperature range of 0°C to 70°C.
The analog-to-digital converters support a maximum resolution of 24 bits.
