Key facts
- Brand
- ZTE
- Model
- MG2636
- Industry
- Electronics
- Documents
- 3
- Languages
- EN · ZH
- Last added
- 2012-05-04
Start here

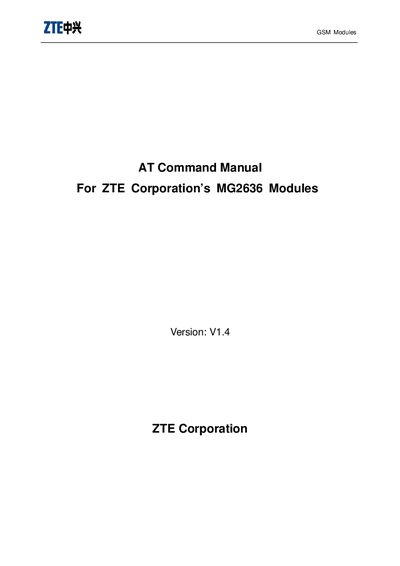

ZTE MG2636 AT Command Manual
The AT Command Manual applies to ZTE MG2636 modules and is intended for system designers, hardware, software and test engineers. It describes the standard GSM voice and data AT commands as well as ZTE‑specific extensions.
The document lists common commands, network service commands, SMS, phonebook, GPRS, and both transparent and non‑transparent transmission commands, including syntax, parameters and example usage.
ZTE MG2636 specifications
| Uplink Frequency (EGSM900) | 880~915 MHz |
|---|---|
| Downlink Frequency (EGSM900) | 925~960 MHz |
| Uplink Frequency (DCS1800) | 1710~1785 MHz |
| Downlink Frequency (DCS1800) | 1805~1880 MHz |
| Transmit Power (Class 4) | 31~35 dBm |
| Supply Voltage | 3.4 V – 4.7 V |
| Operating Temperature (Normal) | -20 °C to +55 °C |
| Dimensions | 35 mm × 32.5 mm × 3.85 mm |
| Weight | 7 g |
| Maximum GPRS Current | 300 mA |
| UART Maximum Data Rate | 921600 bps |
All ZTE MG2636 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Which command is used to answer an incoming call?
The ATA command answers an incoming call.
How do you set the module’s baud rate?
Use the +IPR command to set the module’s baud rate.
What temperature ranges does the MG2636 module support?
The module works from –20 °C to +55 °C normally, can operate from –30 °C to +70 °C in expanded conditions, and can be stored from –40 °C to +85 °C.
What are the physical dimensions and weight of the MG2636 module?
The module measures 35 mm × 32.5 mm × 3.85 mm and weighs about 7 g.
What frequency bands does the MG2636 module support?
The MG2636 operates in the EGSM900 band (880~915 MHz) and the DCS1800 band (1710~1785 MHz).
What is the maximum output power of the MG2636 module?
It can transmit up to 2 W (Class 4) with a power level of 31~35 dBm, or 1 W (Class 1) at 28~32 dBm.
