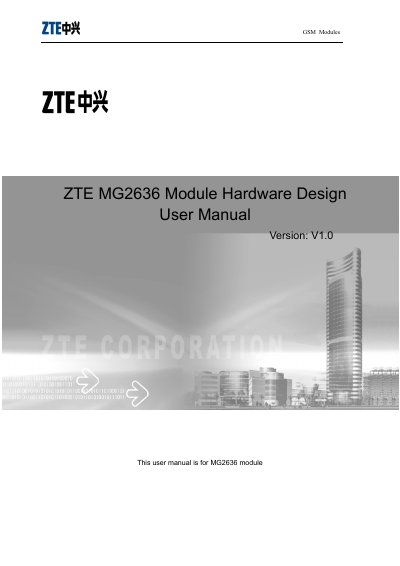

This manual introduces the MG2636 module hardware design specifications.
This manual provides hardware and mechanical design guidance for the ZTE MG2636 module. It is intended for system, mechanical, hardware, software and test engineers who develop wireless terminals based on this module.
The document contains four main chapters: General Description, PIN Definitions, Hardware Interface Description, and Mechanical Design, plus tables of functions, pin diagrams, connector definitions, and mechanical drawings. Key specifications such as frequency bands, voltage range, dimensions and power consumption are listed for quick reference. This manual is written in Chinese.
| Uplink Frequency (EGSM900) | 880~915 MHz |
|---|---|
| Downlink Frequency (EGSM900) | 925~960 MHz |
| Uplink Frequency (DCS1800) | 1710~1785 MHz |
| Downlink Frequency (DCS1800) | 1805~1880 MHz |
| Transmit Power (Class 4) | 31~35 dBm |
| Supply Voltage | 3.4 V – 4.7 V |
| Operating Temperature (Normal) | -20 °C to +55 °C |
| Dimensions | 35 mm × 32.5 mm × 3.85 mm |
| Weight | 7 g |
| Maximum GPRS Current | 300 mA |
| UART Maximum Data Rate | 921600 bps |
The module works from –20 °C to +55 °C normally, can operate from –30 °C to +70 °C in expanded conditions, and can be stored from –40 °C to +85 °C.
The module measures 35 mm × 32.5 mm × 3.85 mm and weighs about 7 g.
It operates on a voltage between 3.4 V and 4.7 V, with a recommended value of 3.8 V.
It supports EGSM900 (880‑915 MHz uplink, 925‑960 MHz downlink) and DCS1800 (1710‑1785 MHz uplink, 1805‑1880 MHz downlink).
