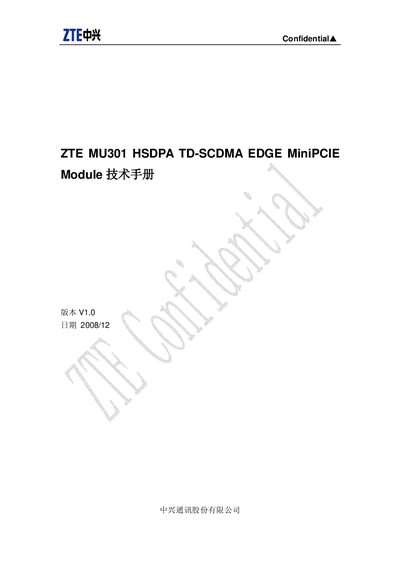

ZTE MU301 MiniPCIE Service Manual
The ZTE MU301 MiniPCIE module is a multi‑mode wireless communication device supporting HSDPA, TD‑SCDMA, GSM/GPRS and EDGE networks. It is intended for use in wireless transmission, vehicle terminals, remote monitoring, and other wireless multimedia applications.
The manual includes hardware specifications, mechanical dimensions, pin‑out and interface descriptions, environmental limits, antenna performance requirements, and cable characteristics, along with compliance references to 3GPP standards. This manual is written in Chinese.
ZTE MU301 specifications
| Working voltage | DC 3.3 V |
|---|---|
| Maximum output power (GSM/GPRS 900) | 33 dBm |
| Maximum output power (EDGE 1800) | 23 dBm |
| Maximum working current (Class 10) | < 700 mA |
| Receive frequency range (GSM900) | 935.2–960.2 MHz |
| Transmit frequency range (GSM900) | 890.2–915.2 MHz |
| Sensitivity (GSM) | < ‑102 dBm |
| Maximum uplink rate | 384 kbps |
| Maximum downlink rate | 2.8 Mbps |
| Weight | ≈ 12.2 g |
| Dimensions (L×W×H) | 30.0 mm × 50.9 mm × 47.0 mm |
All ZTE MU301 documents by type
Disassembly, diagnostics and part numbers, for repair.
Questions answered in these manuals
What network standards does the ZTE MU301 module support?
It supports HSDPA, TD‑SCDMA, GSM/GPRS and EDGE networks.
What is the required supply voltage for the module?
The module requires a 3.3 V DC power supply.
What network standards does the MU301 support?
The MU301 supports TD‑SCDMA, HSDPA, GSM, GPRS, EDGE, UMTS and can be used with the China Mobile WMMP 3.0 specification.
Which operating systems are compatible with the MU301 module?
The module is compatible with Windows XP, Windows Vista, Windows 7, Linux and WinCE.
