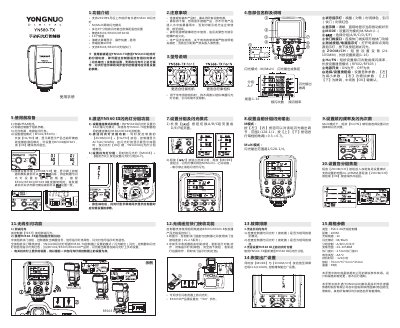

Yongnuo YN560-TX Wireless Flash Trigger Controller User Manual
This document is the user manual for the Yongnuo YN560-TX, a 2.4G wireless flash trigger controller designed to control Yongnuo YN560 III flashes released after January 2013. The device supports two flash modes (M and Multi), allows remote control of flash output and zoom settings for up to six groups, and is compatible with RF602, RF603, and RF603 II transceivers. It features a large clear screen for easy operation and a transmission range of 100 meters.
Read onlineYongnuo YN560-TX specifications
| Type | FSK 2.4G无线控制器 |
|---|---|
| Transmission distance | 100 m |
| Wireless channels | 16 |
| Flash modes | M/Multi |
| Group control | A/B/C/D/E/F |
| Zoom range | 24‑105 mm |
| Shutter interface | 2.5 mm |
| Battery type | AA × 2 |
| Standby time | 120 hours |
| Dimensions | 65.5 mm × 89 mm × 42 mm |
Source: Yongnuo YN560-TX II Wireless Flash Controller User Manual
All Yongnuo YN560-TX documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I set the communication mode and channel for the YN560‑TX II?
Set the compatible flash (e.g., YN560 III/IV) to RX mode, then select the same communication mode (RF602 or RF603) and channel on the controller, and assign the flash to a group (A‑F).
From: Yongnuo YN560-TX II Wireless Flash Controller User Manual
What should I do if the controller does not turn on?
Check the battery level; if the indicator flashes, replace the two AA batteries with fresh ones.
From: Yongnuo YN560-TX II Wireless Flash Controller User Manual
Which Yongnuo flashes does the YN560-TX support?
It supports all Yongnuo YN560 III flashes released since January 2013.
From: Yongnuo YN560-TX Wireless Flash Trigger Controller User Manual
What flash modes are available on the controller?
The controller supports two flash modes: M and Multi.
From: Yongnuo YN560-TX Wireless Flash Trigger Controller User Manual
